Real-Time Vibration Monitoring Systems Guide

Pricing varies by configuration; complete units with an ISEE geophone start around $5,250, while used units can range from about $2,995 to $5,250 depending on features. Cloud software subscriptions and rental options are priced upon request, with discounts available for multi-unit purchases.

Systems range from handheld and portable seismographs for short-term compliance checks to permanent multi-channel monitors with 4 to 6 channels for continuous project tracking. Cloud-based platforms add remote access, automated alerts, and data hosting for long-term or multi-site monitoring needs.

Most construction and blasting projects require monitors compliant with ISEE (2011), DIN 45669-1, and in some regions Swedish blasting and pile driving standards (SS4604866, SS025211). These standards define measurement accuracy, frequency range, and reporting requirements for legally defensible vibration data.

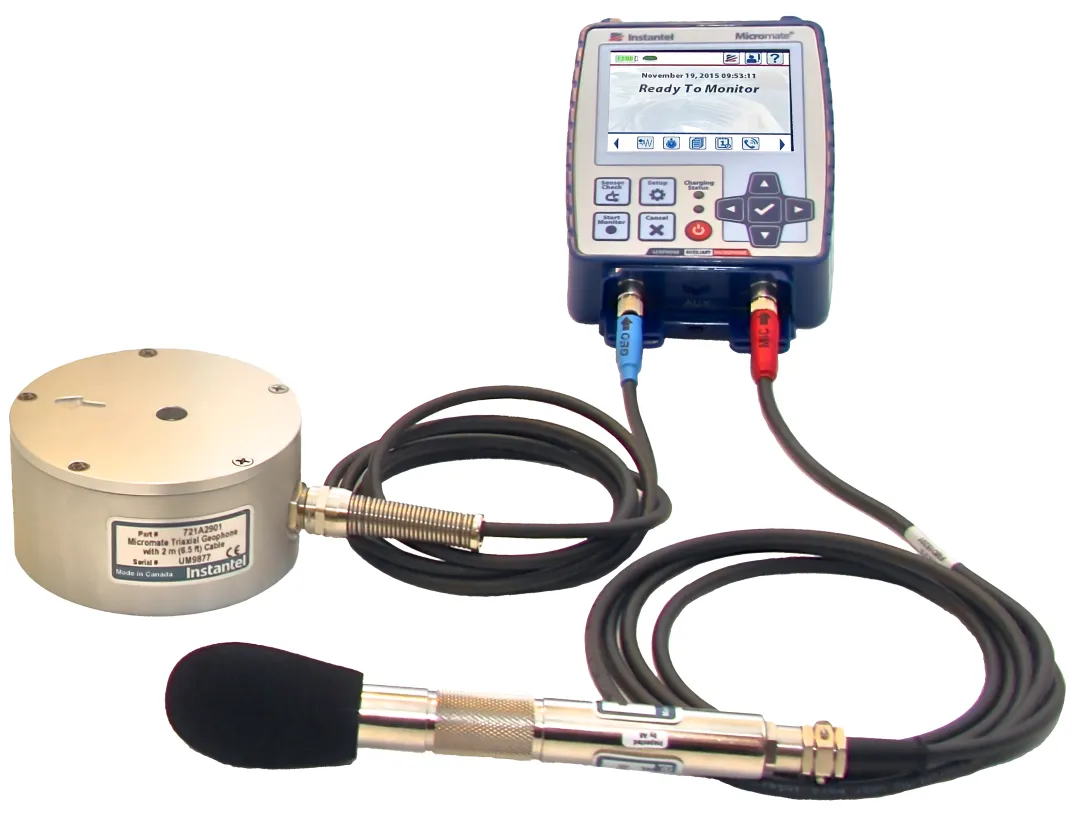

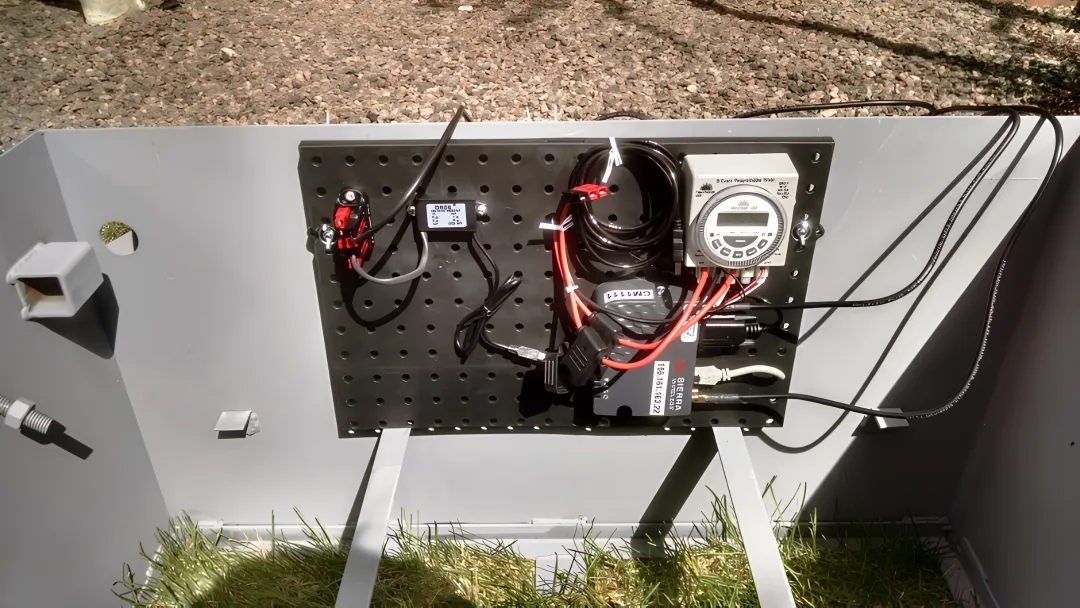

Instantel units like the Micromate and Minimate Pro typically run 10 to 15 days on internal battery power. For extended remote deployments, battery life can be lengthened using solar panels or external battery packs without interrupting continuous data collection.

Yes. Hardware monitors and cloud software platforms are available for rent or lease, which is useful for short-term projects or evaluating equipment before purchase. Rental packages typically include technical support, calibration, and data hosting services.

In addition to triaxial ground vibration, many monitors record air overpressure and sound/noise levels using an integrated microphone channel. This combined data helps demonstrate compliance with blasting, construction, and environmental noise regulations from a single instrument.
