Portable Vibration Meters for Efficient Monitoring

Instantel's Micromate, Micromate Plus, and Minimate Pro units meet International Society of Explosive Engineers (ISEE 2011) standards, comply with DIN 45669-1, and satisfy Swedish blasting (SS4604866) and pile driving (SS025211) standards, making them suitable for a wide range of domestic and international regulatory requirements.

Yes, all three units—Micromate, Micromate Plus, and Minimate Pro—are available for both purchase and rental. Renting is a cost-effective option for short-term projects, while purchasing suits companies with ongoing or long-term monitoring needs. Custom remote monitoring system rentals are also available.

These units provide 10 to 15 days of uninterrupted monitoring on internal battery power. Battery life can be extended further with an optional solar panel or external battery, making them well-suited for remote or long-duration monitoring installations without frequent site visits.

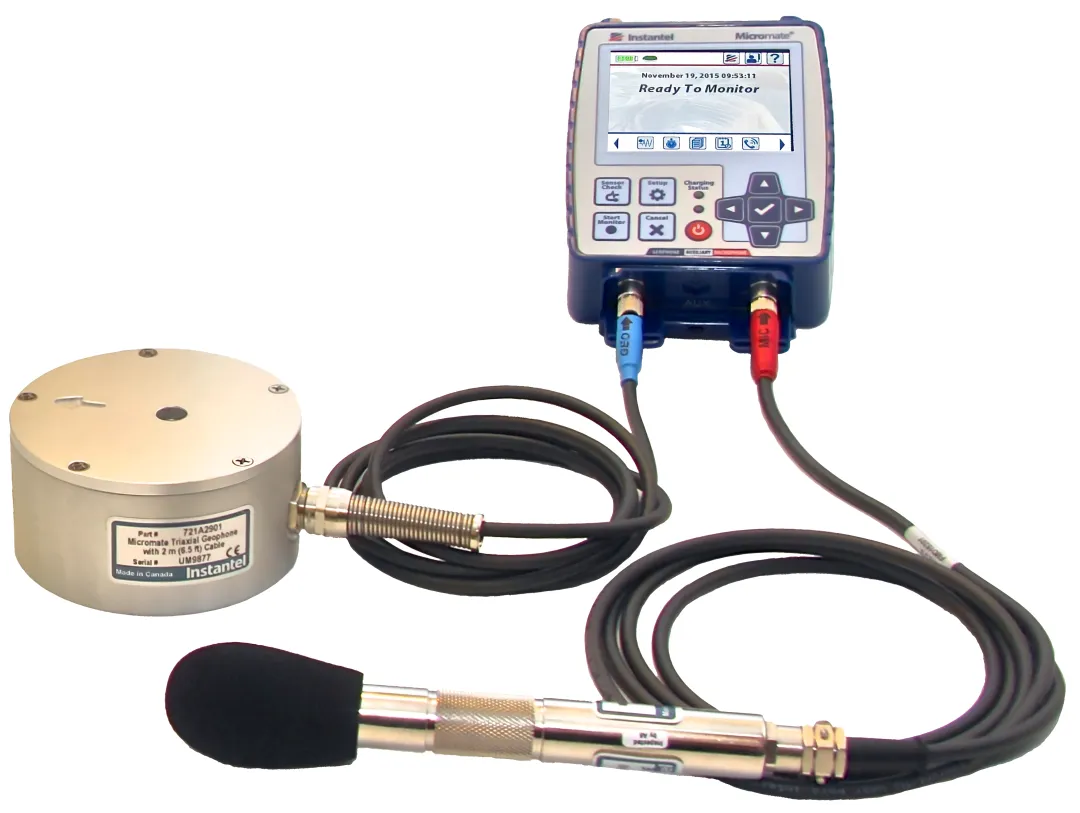

Micromate and Micromate Plus are 4-channel units designed for standard compliance monitoring of vibration, sound, and air overpressure. The Minimate Pro is available in 4 or 6 channel configurations, supports sample rates up to 65,536 samples per second, and connects to additional sensors like accelerometers, high-frequency geophones, and hydrophones for advanced monitoring applications.

Data can be transferred via built-in USB ports at speeds up to 12 MBps for quick field downloads, or managed remotely through THOR software and cloud-hosted data services. Automated email and text alerts notify project teams of vibration, sound, or maintenance events in real time.

Annual calibration is recommended to maintain measurement accuracy and warranty coverage. Instantel units include a one-year warranty against manufacturing defects, which can be extended a second year if the unit is returned to the factory for service and calibration within 30 days of the next scheduled calibration date.
