Minimate Pro4Minimate Pro6

4 or 6 Channel Advanced Monitoring Platform

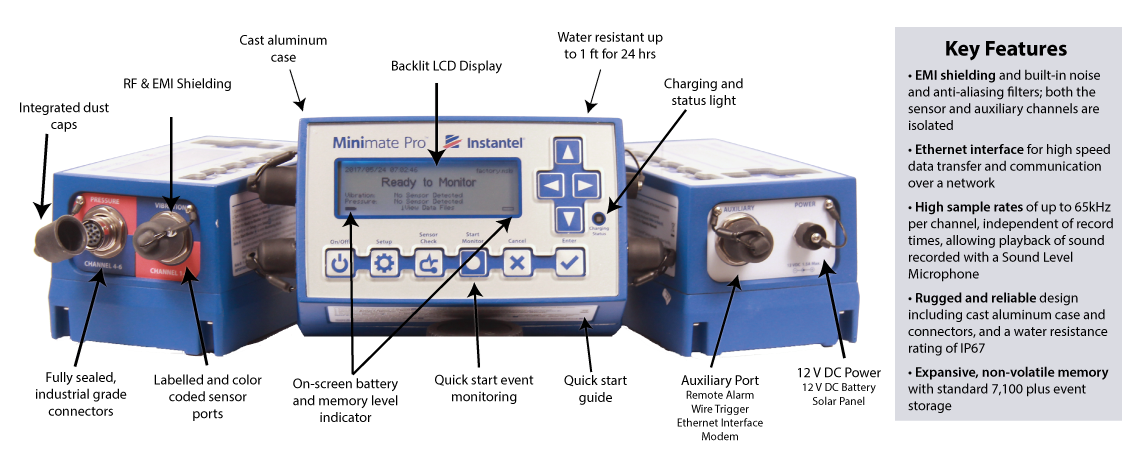

Minimate Pro Features

Available as a 4 channel or 6 channel unit, the Minimate Pro platform can be used for compliance monitoring as well as advanced monitoring using multiple connected sensors.

The Minimate Pro Series offers a solution designed to meet all of your monitoring needs. Monitor vibration, noise and air overpressure to meet industry standards such as the International Society of Explosive Engineers (ISEE) and DIN 45669-1. The Minimate Pro supports regulatory compliance monitoring, as well as advance monitoring features. Whether you are a new user or the most advanced, the Minimate Pro Series monitors can grow as your monitoring needs change.

The Minimate Pro has advanced monitoring capabilities with sample rates from 512 to 65,536 samples per second. With the Minimate Pro Series you can connect accelerometers, high frequency geophones, hydrophones or high pressure microphones. Use an Instantel splitter box, and connect up to six hydrophones on one Minimate Pro6 or four on a Minimate Pro4! Take advantage of the 65 kHz sample rate and get sound playback when you connect a Sound Level Microphone.

Easy to use with touch screen, intuitive menu and a color display

Small enough to fit in the palm of your hand, the Micromate features a touch screen display with large, high resolutions graphics, and a key pad. The full display touch screen QWERTY keyboard makes entry of data and notes convenient and easy.

Built-in USB capability provides the flexibility you need

Standard on every Micromate unit is a USB port with operating speeds of up to 12 MBps. Connect a USB flash drive to transfer events or even update the unit’s firmware – quickly, easily and all in the field without the need for a computer.

Flexible power solutions, ideal for remote or permanent installations

The Micromate provides 10 to 15 days of uninterrupted monitoring with its internal battery. The battery life can easily be extended by connecting a solar panel or an external battery.

Expansive memory for long term monitoring

The Micromate has an internal, non-volatile memory of 15 MB that can store up to 1000 events. An optional upgrade increases the memory to 60 MB for a storage capacity of over 4000 events.
